Multiple Substrate Finishing System

Features & Benefits

  • Unique finishing capabilities – A wide variety of substrates and finishing applications can be supported on just one machine
  • Wide scope in design – Modular design can be reconfigured for a variety of specialist finishing applications such as booklets, tickets, tags, wrap & colour chip labels
  • Consistent results – Intelligent taper tension control system achieves a perfect rewind profile every time
  • Maximise efficiency – The job memory facility enables operators to use pre-loaded job settings in a matter of seconds
  • Tailored to you – As our machines are designed and built in-house, we have the unique ability to tailor equipment to meet the specific requirements or requests of our customers
Watch Video
Download PDF

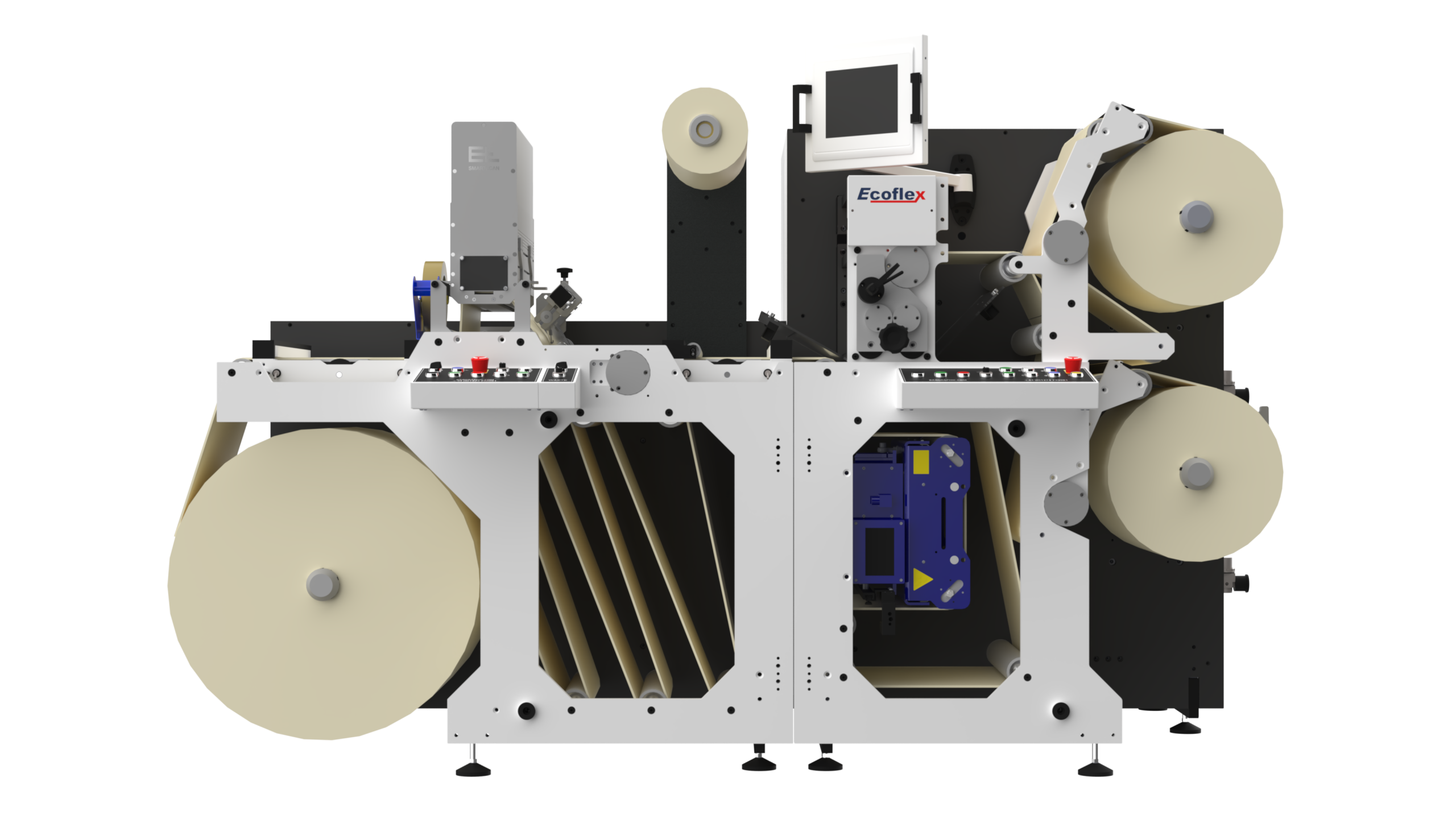

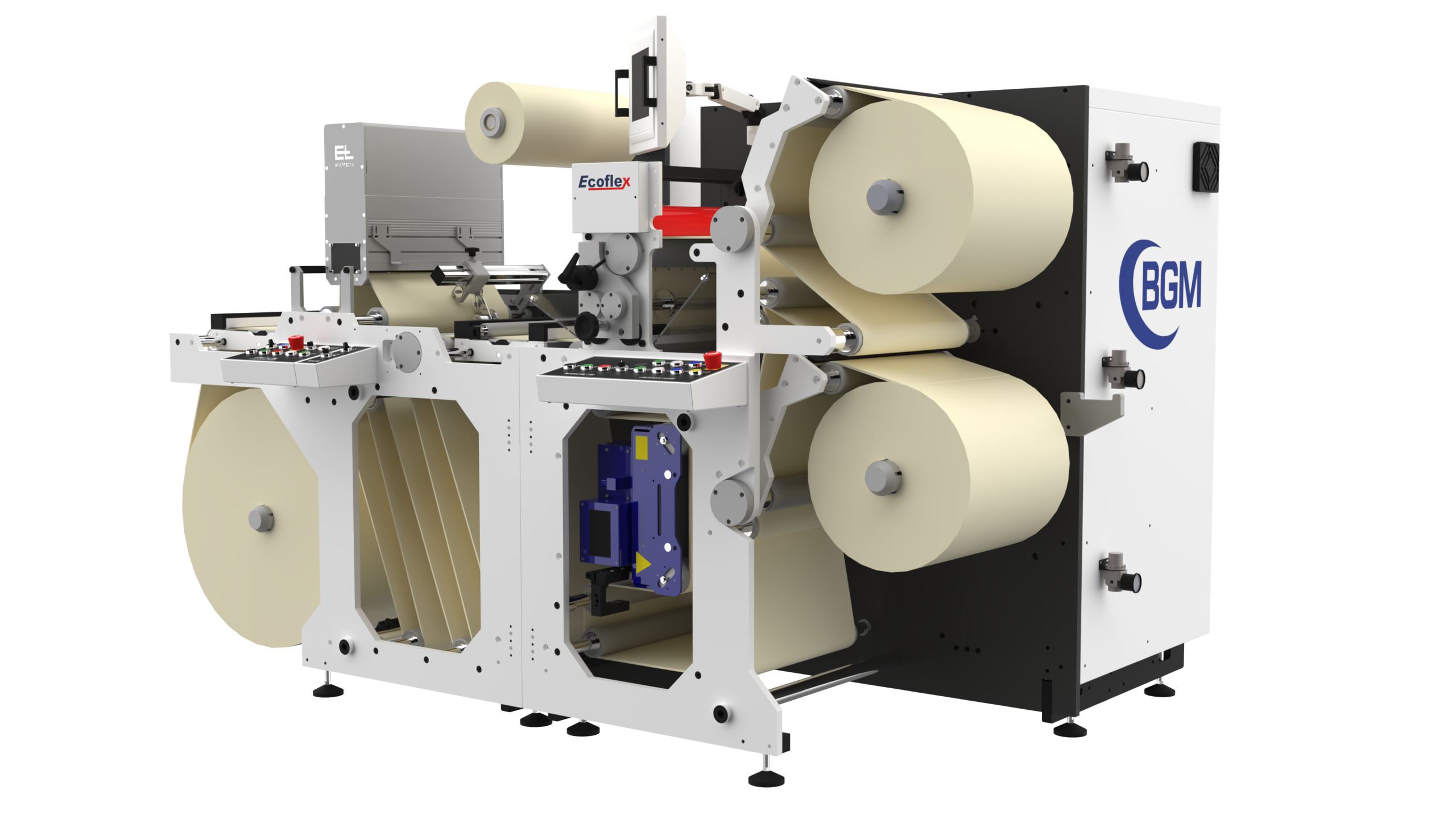

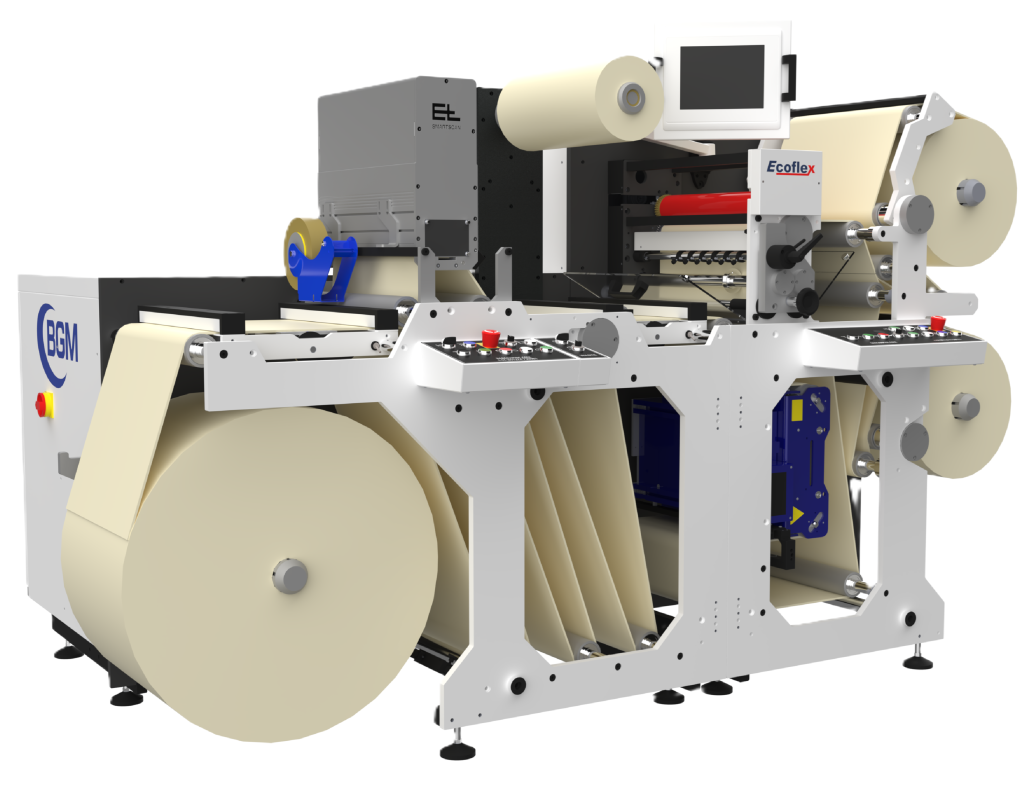

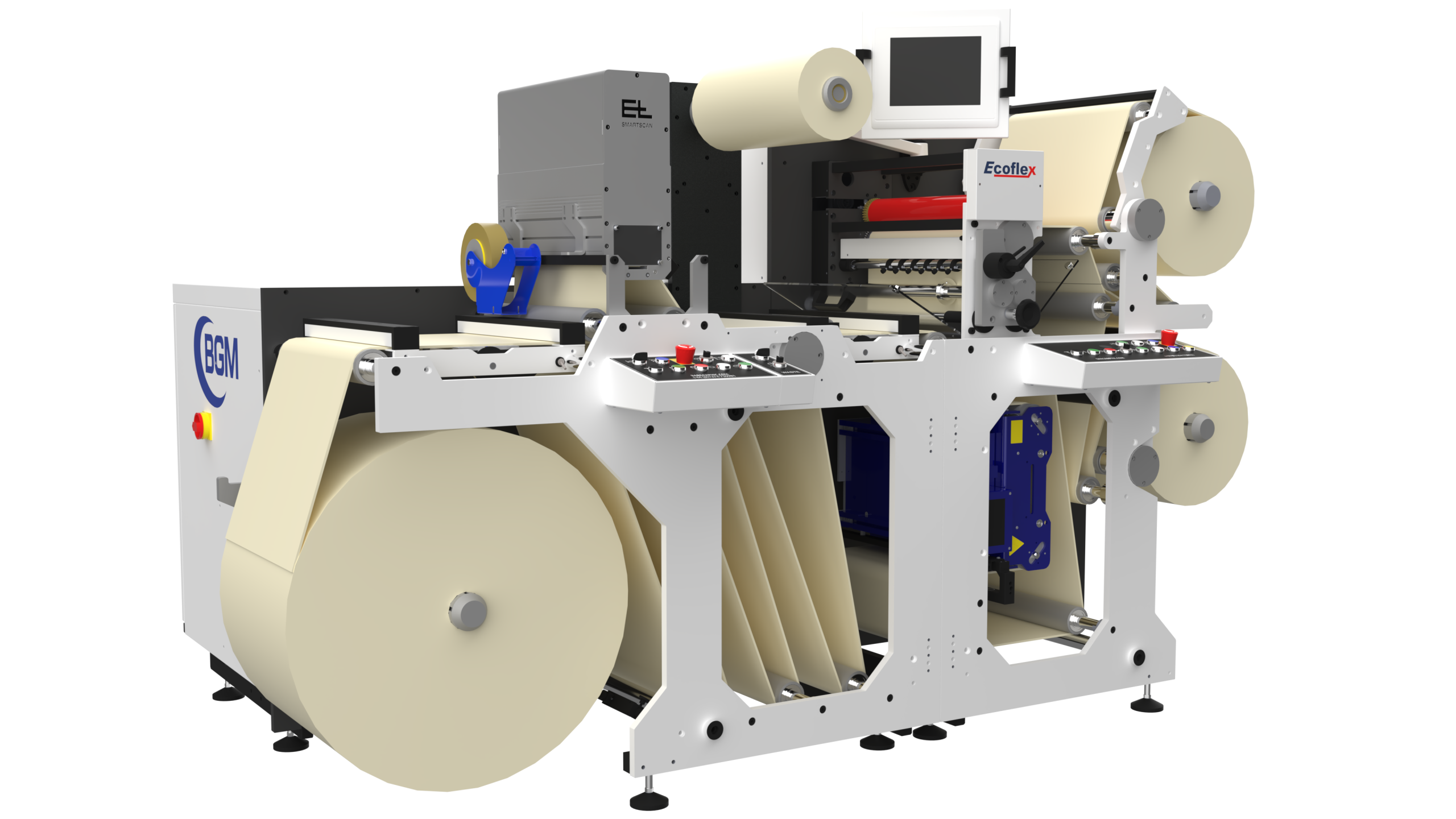

BGM Elite 450 EcoFlex Multiple Substrate Finishing System

The economical solution for multi-purpose, multi-substrate inspection slitting and rewinding.

The Ecoflex Multiple Substrate Finishing System is able to finish a wide range of supported and unsupported films, foils, label stocks, papers and light boards from thicknesses of 11 microns and up.

Dynamic performance speeds of up to 300m/min.

Maximise changeover efficiency with a 10” touch screen and a 1-metre roll capacity

The machine can be fitted with a large, 1-metre capacity unwind and integral roll lift, maximising roll changeover efficiency.

Easy to navigate, 10” touch screen provides a host of functions including a job memory facility for fast and efficient job changeovers with minimal operator intervention.

The Multiple Substrate Finishing System ensures accuracy with a wide variety of automatic web inspection control systems.

This machine can accommodate a wide variety of automatic web inspection control systems, from sensor-free MMLD through to full 100% Inspection control.

Due to the unique design of the fully modular Ecoflex, a number of manufacturers’ inspection systems are retrofittable, offering detection of print errors such as text or ink irregularities, scratches, registration errors or colour variations.

Fully automated workflow systems are achievable from press to rewinder, as well as removal of waste, whilst still inspecting the web.

Flexibility in design with a variety of specialist finishing applications.

Primarily designed for flexible packaging, film and label applications, the Multiple Substrate Finishing System modular design can be reconfigured for a variety of specialist finishing applications, such as booklets, tickets, tags, wrap & colour chip labels.

  • Technical Specification
  • Video
  • Download
  • Gallery
Parameter Value
Web Widths 450mm (17.75”)
Unwind Capacity 760mm (30”
Servo Driven Rewind Capacity 500mm (19.7”)
Minimum Slit Width 13mm
Slit Tolerance 0.15mm (0.006”)
Machine Speed Variable up to 300m/min (984ft/min)
Machine Requirements 3 Phase + Neutral 32A, 80psi – 5.5 bar
Download PDF
