Features & Benefits

  • Consistent results – Re-registration maintained throughout all processes
  • Outstanding speeds – Re-register printing at speeds of up to 100m/min and semi-rotary die-cutting speeds of up to 100m/min
  • Increase efficiency – Automatic print to print and die-cut registration
  • Flexible and versatile – A multitude of digital converting and finishing processes
  • Tailored to you – As our machines are designed and built in-house, we have the unique ability to tailor equipment to meet the specific requirements or requests of our customers
Watch Video
Download PDF

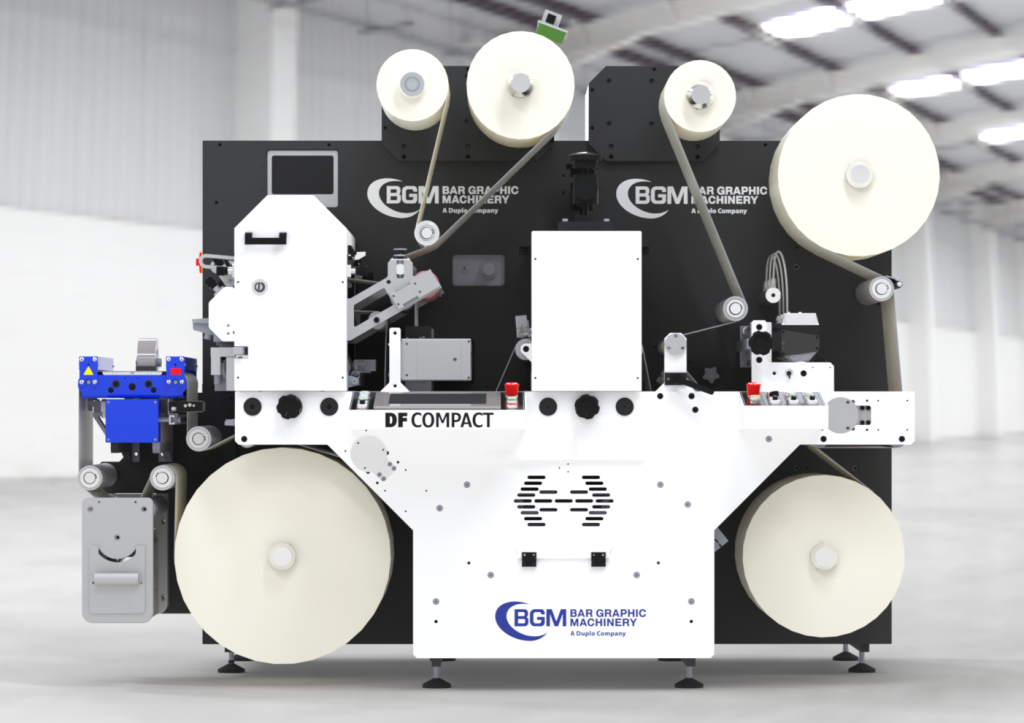

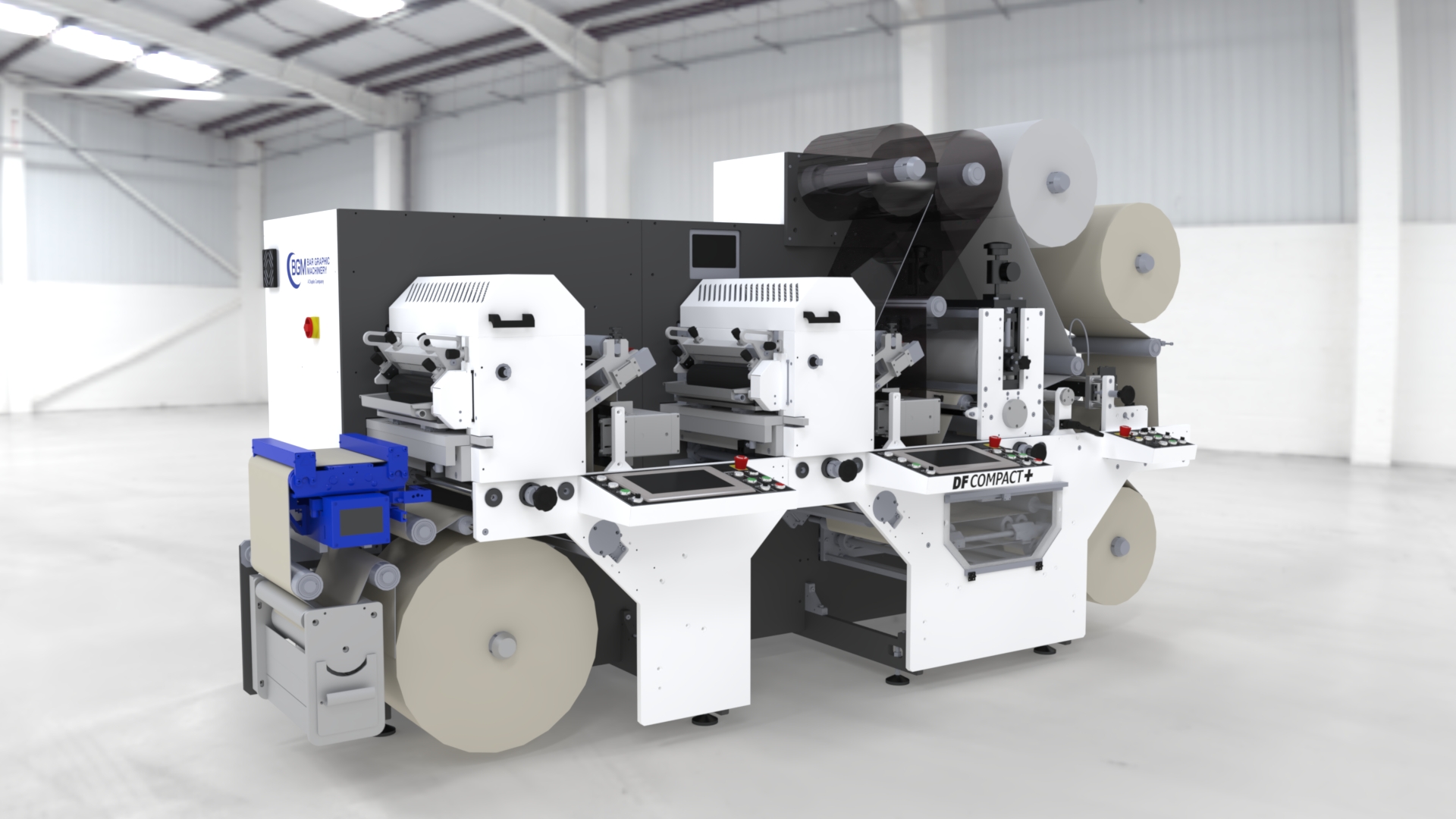

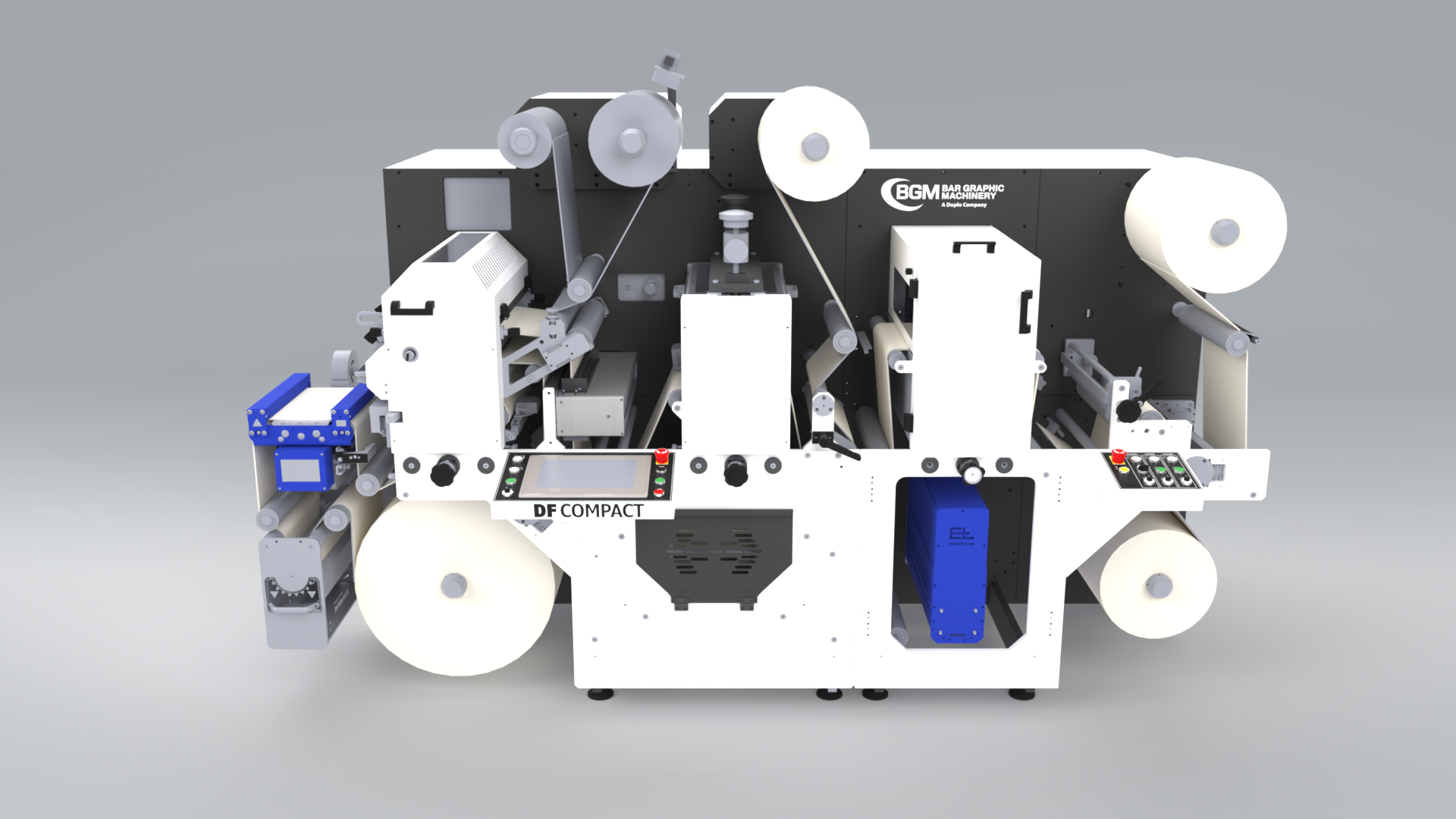

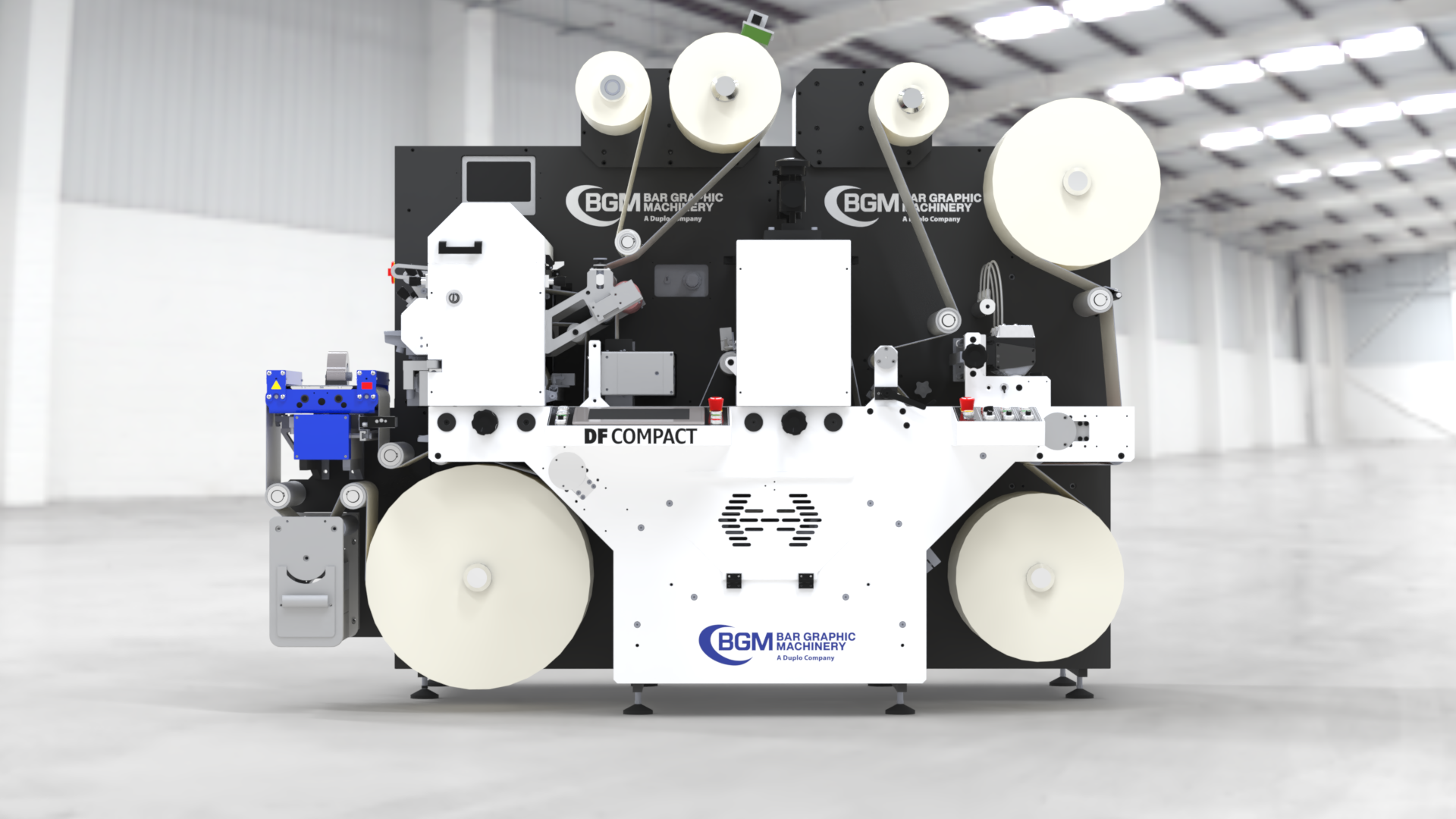

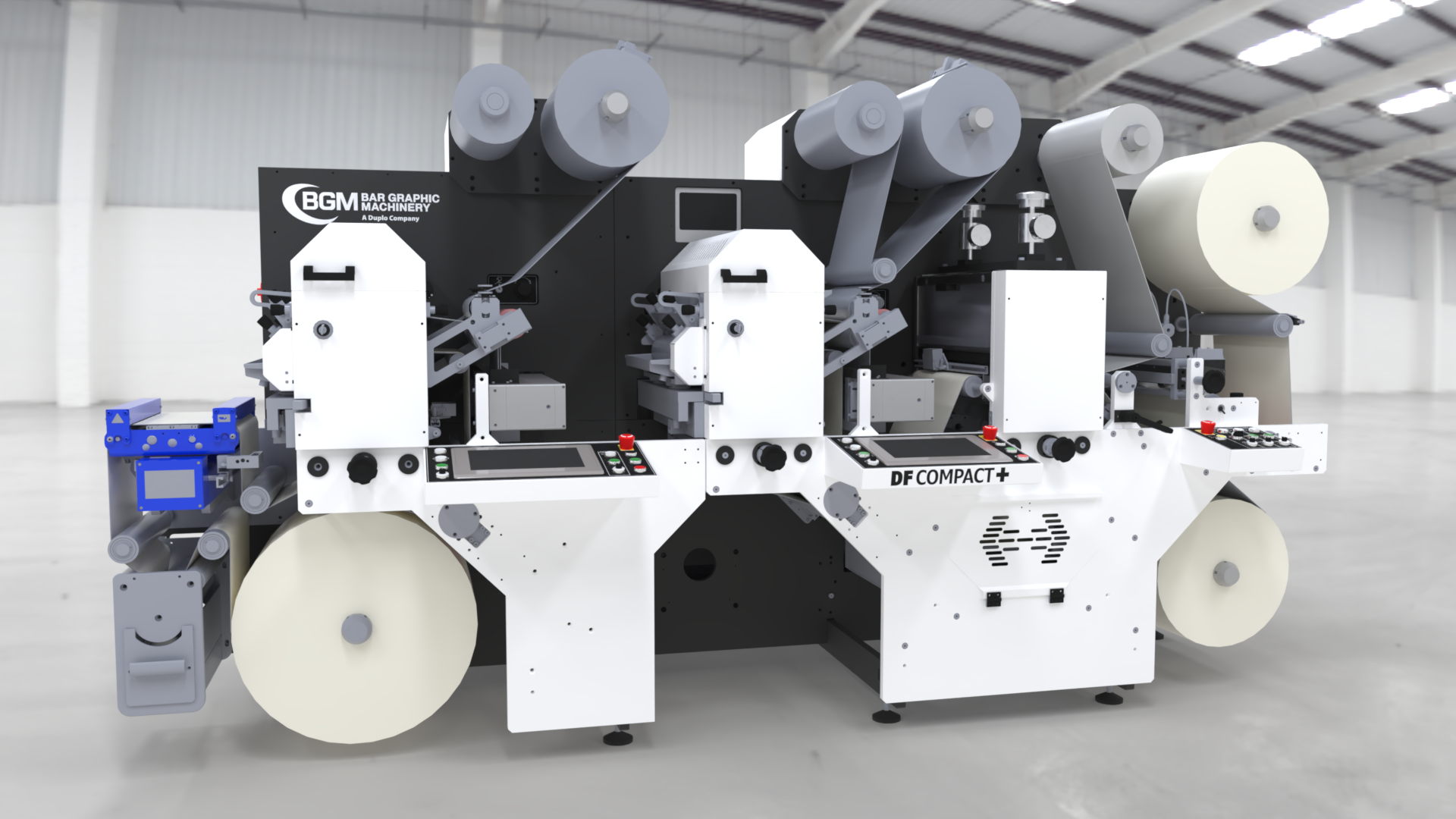

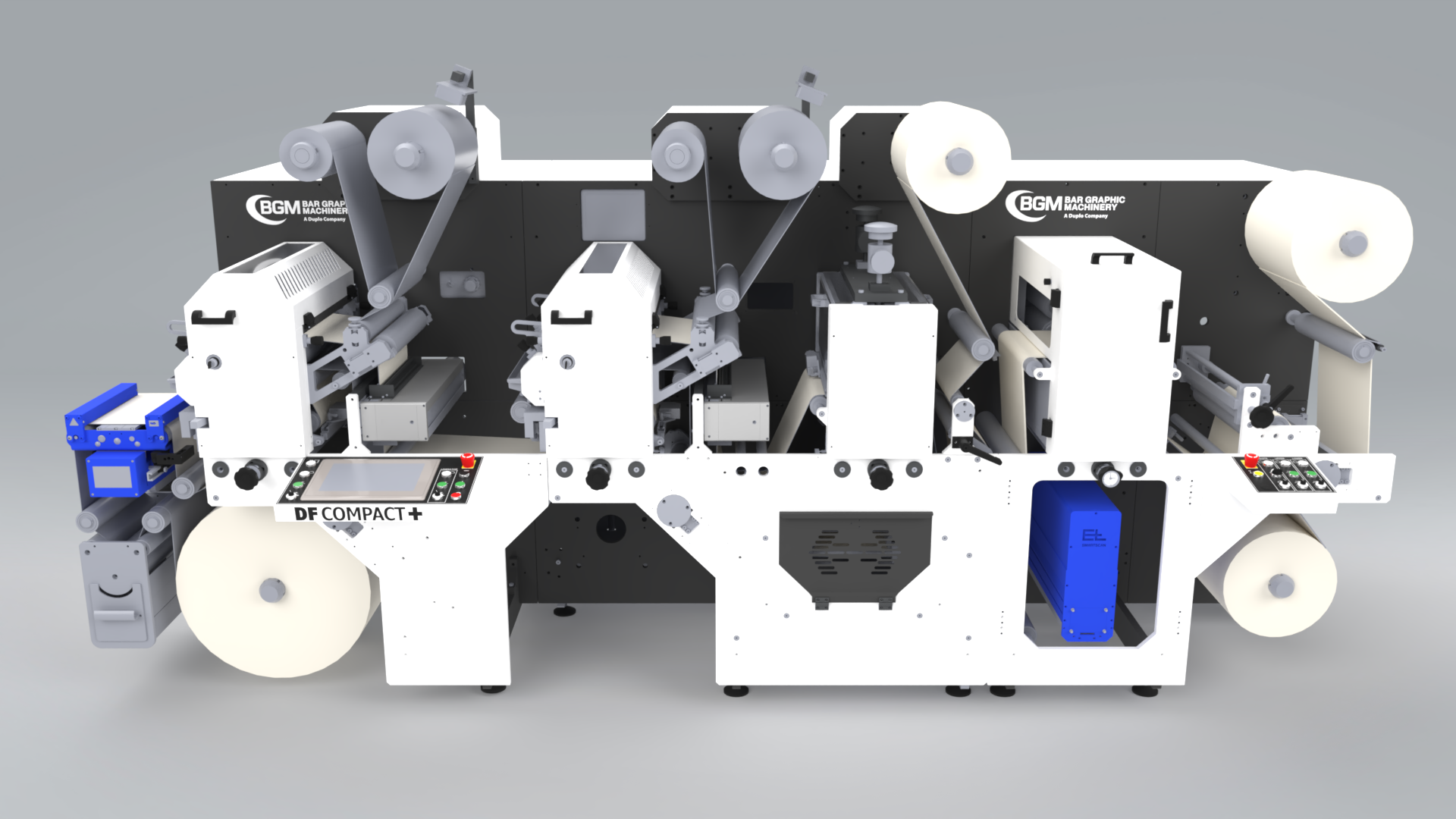

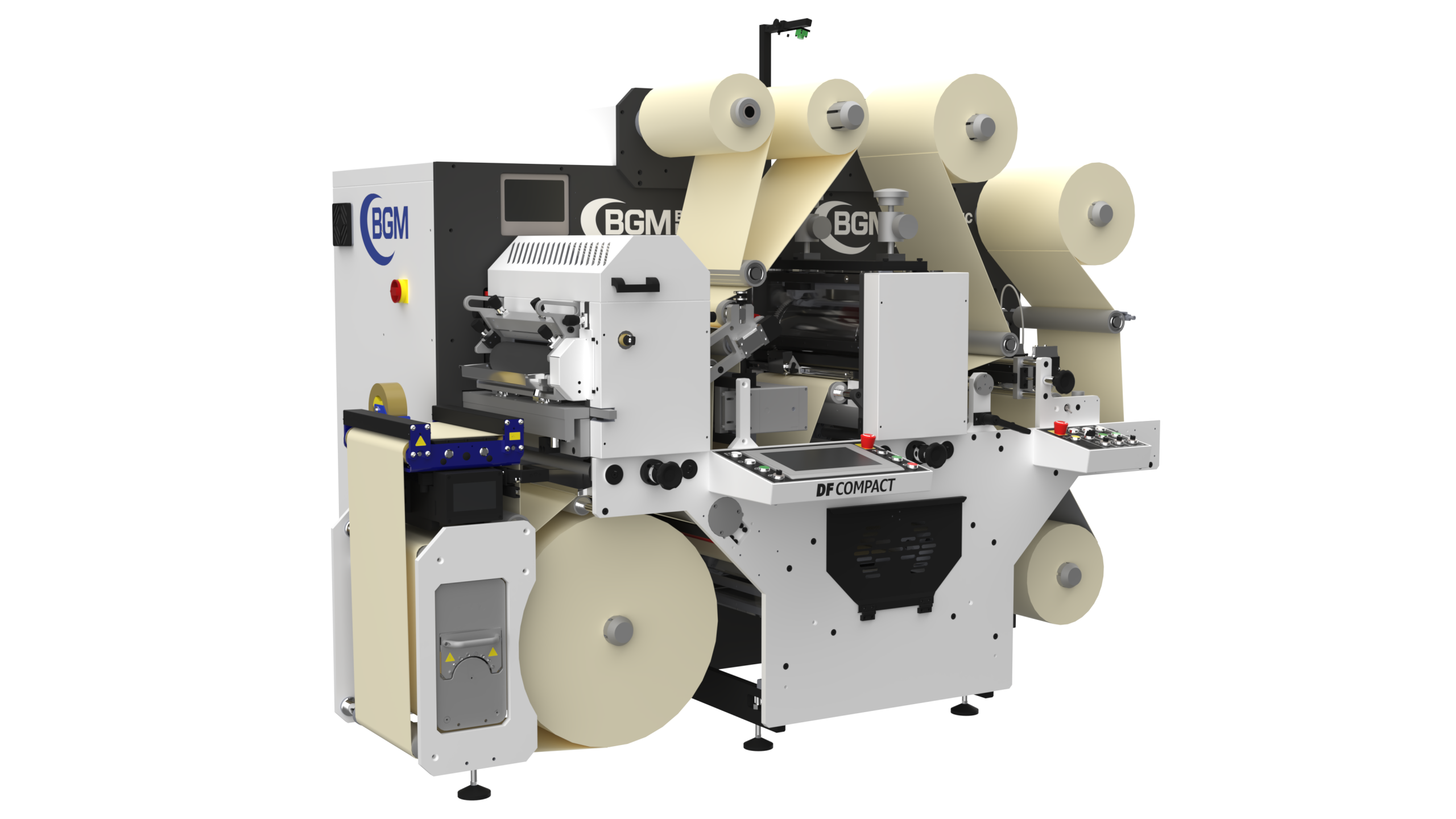

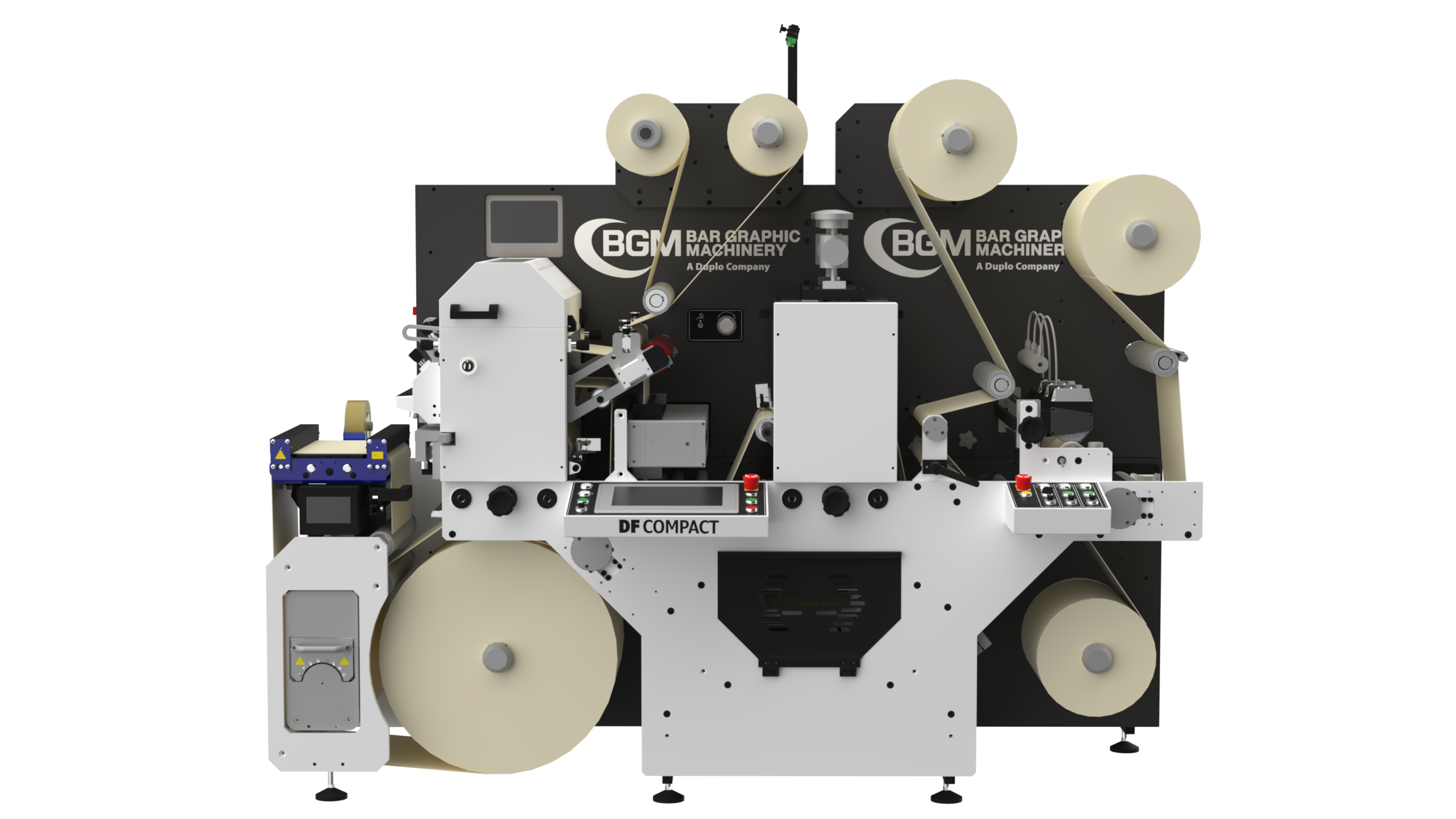

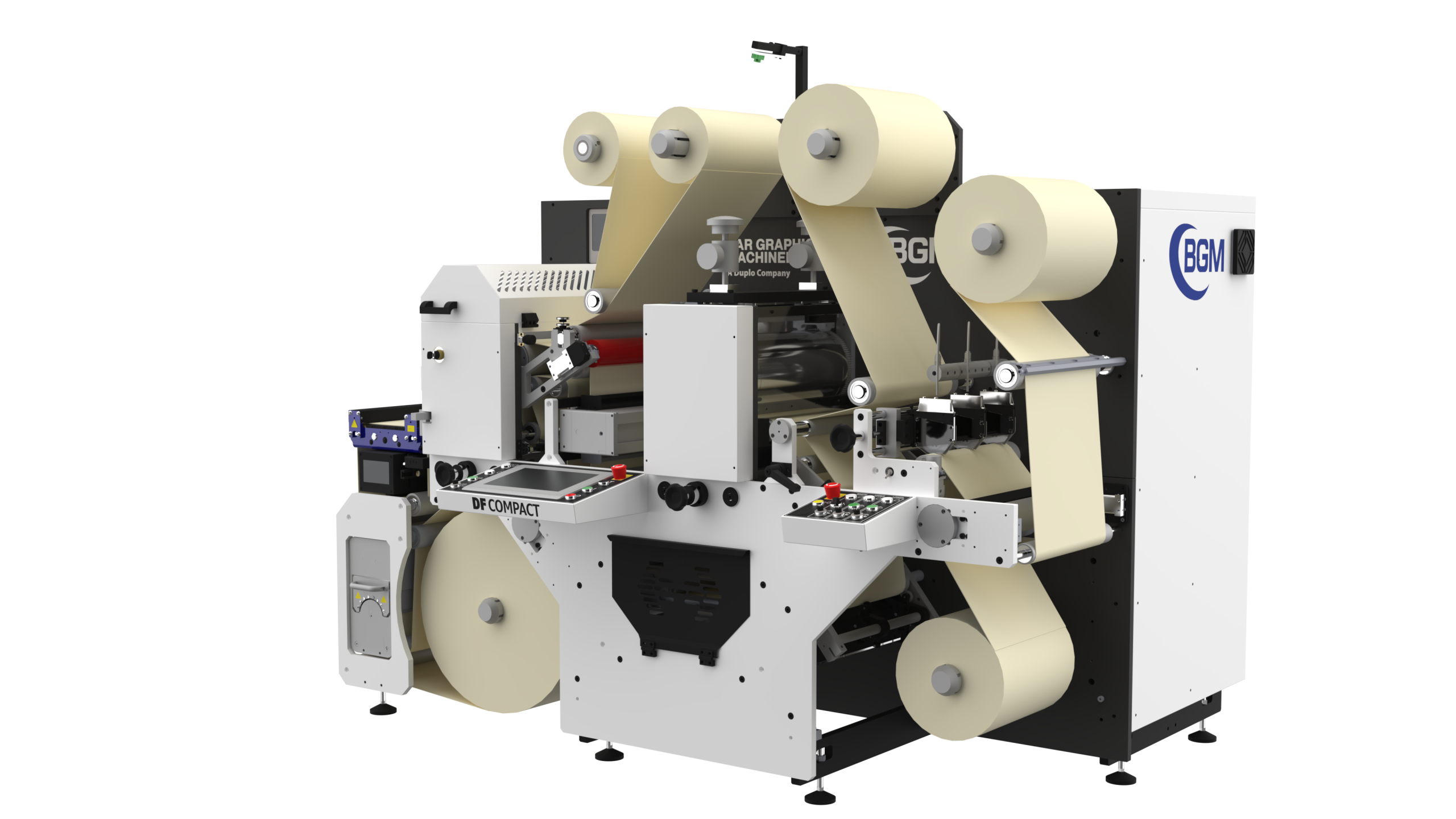

BGM Compact and Compact Pro

Bar Graphic Machinery’s new Compact and Compact Pro machines are designed specifically for finishing the majority of digitally printed labels and offer just what you need, when you need, without the fuss.

New from BGM, Compact is a line up of efficient and effective finishing lines optimised for digitally printed labels.

When it comes to finishing digitally finishing printed labels, as much as 80% of the work produced doesn’t require complex processes and enhanced value-added services.

Rather than blocking finishing lines that feature high-value foiling, embossing, laser die-cutting and the like, a standard varnish or lamination coupled with semi-rotary die-cutting is all it really takes to get digital labels finished, rewound, and ready for application.

Yet many printers are still running digitally printed labels down feature-heavy finishing lines, creating bottlenecks and deoptimizing their carefully scheduled production.

BGM has developed the Compact and Compact Pro to overcome this challenge.

  • Technical Specification
  • Video
  • Download
  • Gallery



Parameter Value
Web Widths Available 370mm (14.5″)
Machine Speed Variable up to 100/min
Unwind Capacity 700mm Diameter
Standard Unwind Mandrel 76mm
Flexographic Print Unit Full Rotary/Semi Rotary
Minimum/Maximum Plate Cylinder 152T
Ink Drying Uv or LED

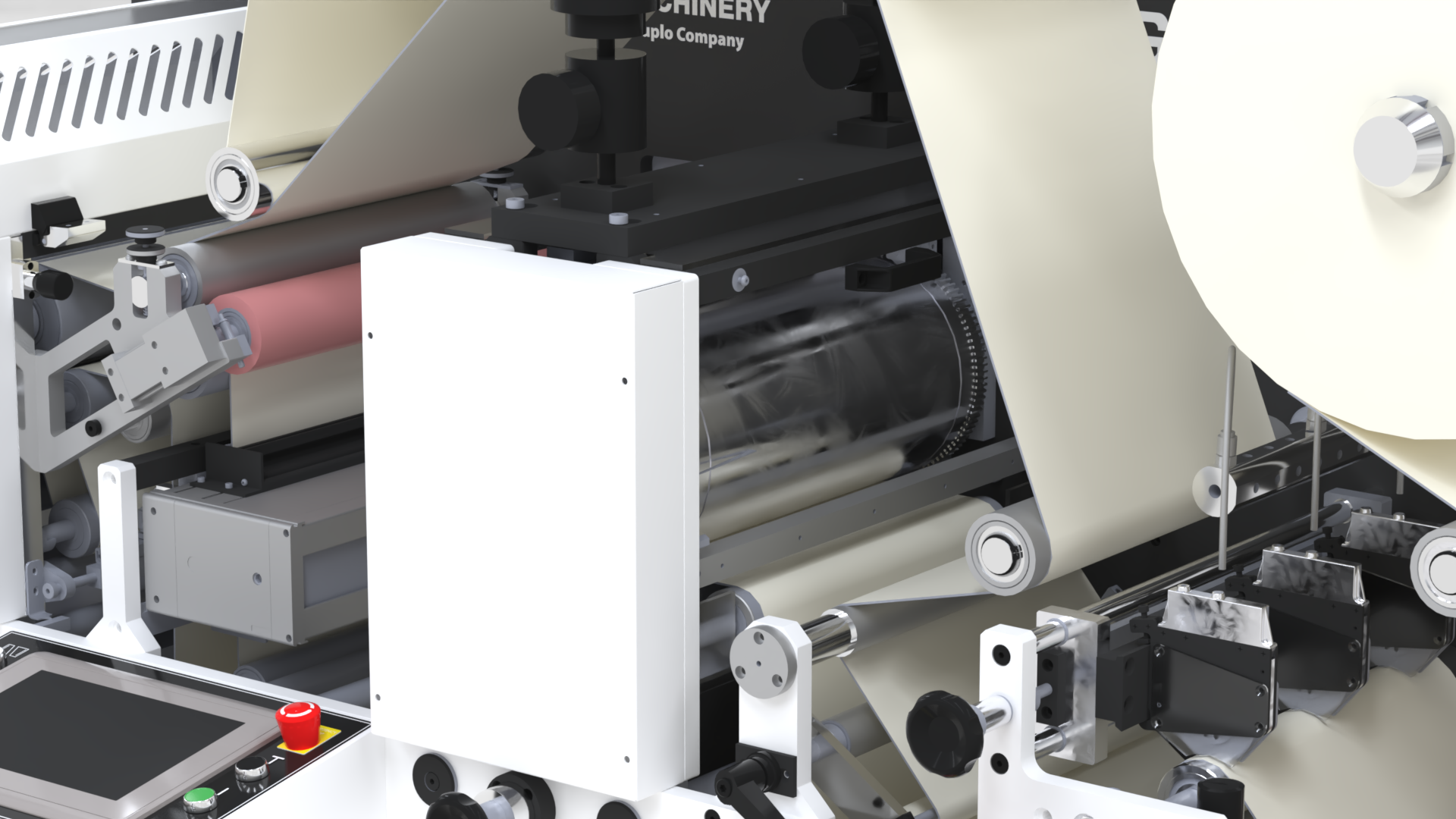

Die Cut Unit Type Semi-Rotary
Maximum Semi-Rotary Die Cut Speed 100 metres per min
Semi-Rotary Die Cylinder Size 26 1/4″
Dispro Compensation Software Yes
Minimum/Maximum Die Cut Repeat 100mm – 600mm

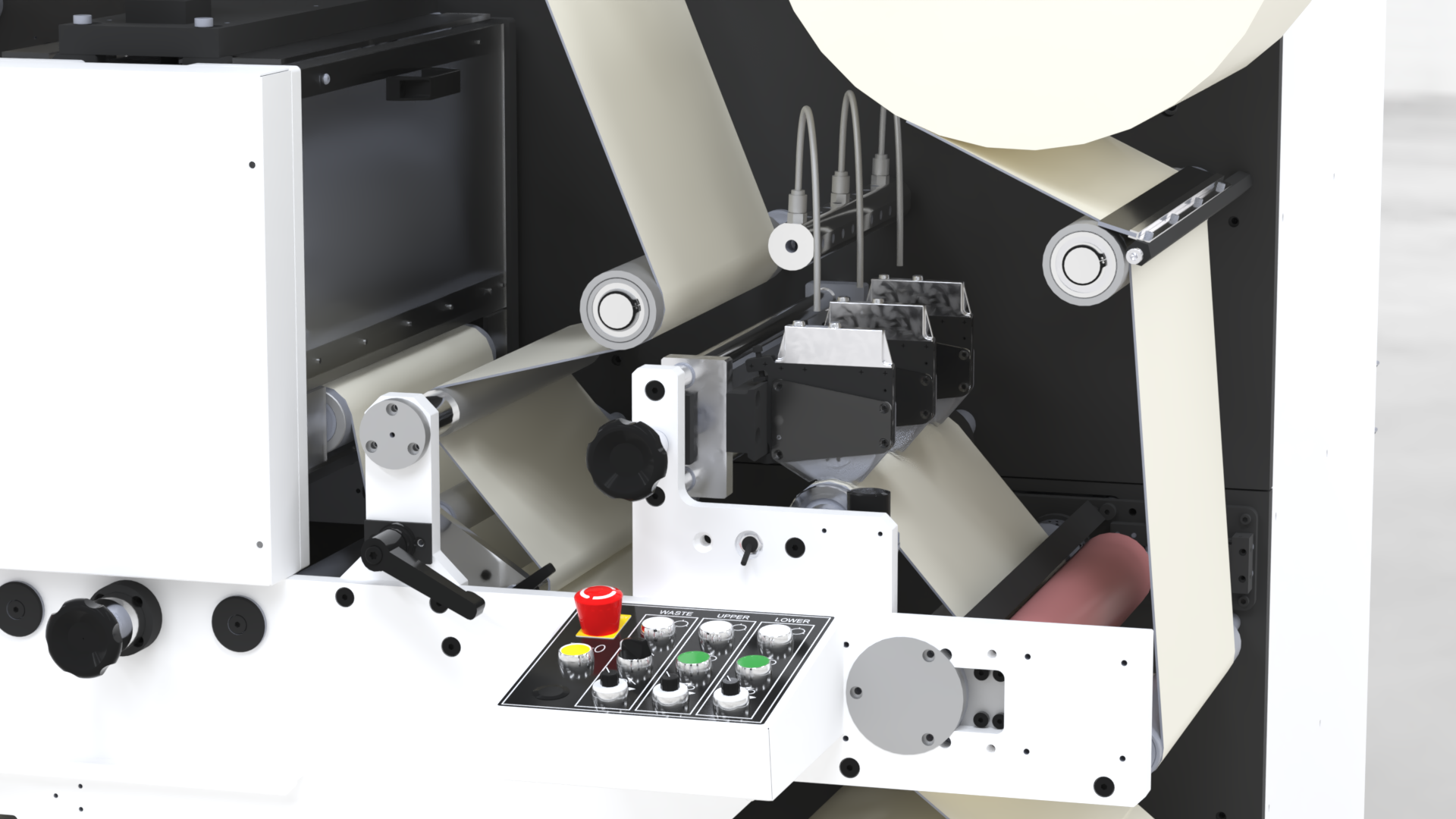

Minimum Slit Width Auto Setting 17mm
Maximum No. of Slit Blades 16
Servo Driven Rewind Capacity 406mm (16”)
Standard Rewind Mandrel 76mm (3”)
